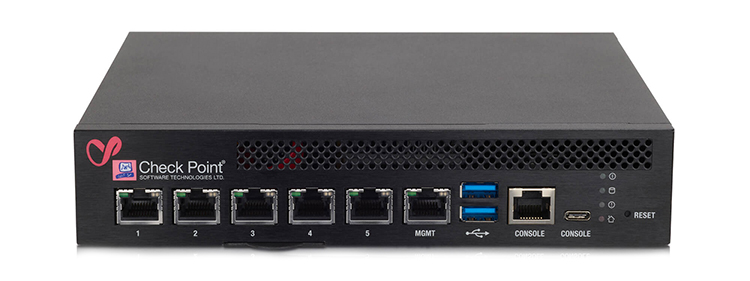

Check Point Quantum 3600 (CPAP-SG3600-SNBT)

Thiết bị tường lửa Checkpoint CPAP-SG3600-SNBT 3600 Security Gateway gồm 5x 10/100/1000 Base-T ports, Management 10/100/1000 Base-T port, 2x USB 3.0 ports, R45 và USB Type-C console, 2 nguồn adapter ngoài.

Thông số kỹ thuật
Mô tả sản phẩm

Thông số kỹ thuật sản phẩm
Enterprise Test Conditions
Threat Prevention (Mbps)	780
NGFW (Gbps)	1.5
IPS (Gbps)	1.9
Firewall (Gbps)	3.3
Firewall 1518B UDP (Gbps)	4
VPN AES-128 (Gbps)	2.71
Connections/sec	32,000
Concurrent connections	2M
Hardware
Interface	5x 10/100/1000 Base-T ports
Management	10/100/1000 Base-T port
Console port	1x RJ45, 1x USB Type-C
USB	2x USB 3.0 ports
Storage	1x 240 GB SSD
CPU	1x CPU, 4 physical cores
RAM	8G
Virtual Systems (maximum)	5
Software
Network Connectivity	Tổng physical và virtual (VLAN) interfaces: 1024/4096 (single gateway/với virtual systems) 802.3ad passive và active link aggregation Layer 2 (transparent) và Layer 3 (routing) mode
High Availability	Active/Active L2, Active/Passive L2 and L3 Session failover cho thiết bị, mạng và đường dẫn ClusterXL và VRRP
IPv6	NAT66, NAT64, NAT46 CoreXL, SecureXL, HA với VRRP-v3
Unicast and Multicast Routing	OSPFv2 & v3, BGP, RIP Static routes, multicast routes Policy-based routing PIM-SM, PIM-SSM, PIM-DM, IGMP v2, v3
Power Requirements
Single Power Supply rating	40W
AC power input	100 to 240V (47~63Hz)
Power consumption avg/max	21W / 25W
Maximum thermal output	85 BTU/hr
Dimensions
Enclosure	Desktop
Dimensions (WxDxH)	8.3 x 8.3 x 1.65 in (210 x 210 x 42mm)
Weight	3.1 lbs (1.4 kg)
Environmental Conditions
Operating	0° to 40°C, humidity 5 to 95%
Storage	–20° to 70°C, humidity 5 to 95%
